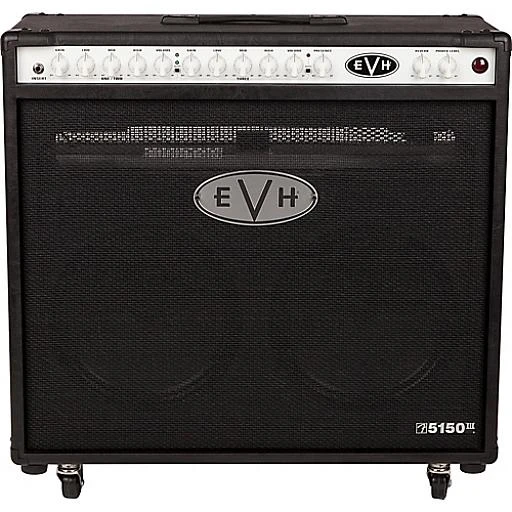

The EVH 5150III Combo is a tube combo amp with two Celestion® G12M 8-ohm speakers and three channels (clean, crunch and lead). Powered by seven JJ ECC83 (12AX7) preamp tubes and two JJ 6L6 power tubes, it also features front-panel adjustable power output from 50 watts down to one watt.
Features include a single input, rear-panel selectable output impedance (4, 8 or 16 ohms), versatile controls (gain, low, mid, high, volume, master presence, rear-panel master resonance, power level, reverb), built-in DSP reverb, rear-panel MIDI input and preamp output, two rear-panel parallel speaker outputs, rear-panel effects loop and headphone jack (mutes power amp), and four-button footswitch (controls all three channels and reverb).
Construction features a custom-shaped birch cabinet with special internal baffling, vintage-style chicken-head control knobs, red jewel, recessed metal side handles, plastic top strap handle, and casters.
| | |
|---|
| Model Name | | 5150III® 2x12 50W Combo |
| Series | | 5150III® |
| Amplifier Type | | Tube |
| Wattage | | 50 Watts |
| Effects Loop | | 1/4" - (Send/Return) |
| Inputs | | One - 1/4" |
| Headphone Jack | | 1/4" Stereo |
| Line Out | | One - (1/4") |
| Extension Speaker Jack | | Two 1/4" Parallel |
| Channels | | Three - (Clean, Crunch, and Lead) |
| Power Handling | | Adjustable-50 watts RMS Max Down to 1 watt |
| Controls | | Gain, Low, Mid, High, Volume, Master Presence, Rear Master Resonance, Power Level, Reverb |
| Voltage | | 120V |
| Speaker | | 2 x 12" Celestion® G12M |
| Speaker Impedance | | 8 ohms |
| Preamp Tubes | | 7 JJ ECC83 (12AX7) |
| Power Tubes | | 2 JJ 6L6 |
| Output Impedance | | 4, 8 or 16 ohms (Selectable) |
| Footswitch | | 4-Button Footswitch Included |
| Unique Features | | Midi Channel and Reverb switchable, master resonance control |
| Pilot Light Jewel | | Red Jewel |
| Cover/Grill Cloth | | EVH Woven with Large Logo and Perforated Grille Panel |
| Effects | | Reverb |
| Handle | | Two Spring-Loaded Side Handles and One Molded Plastic Top Handle |
| Height | | 25" |
| Length | | 12" |
| Width | | 27.5" |
| Weight | | 84 lbs |
